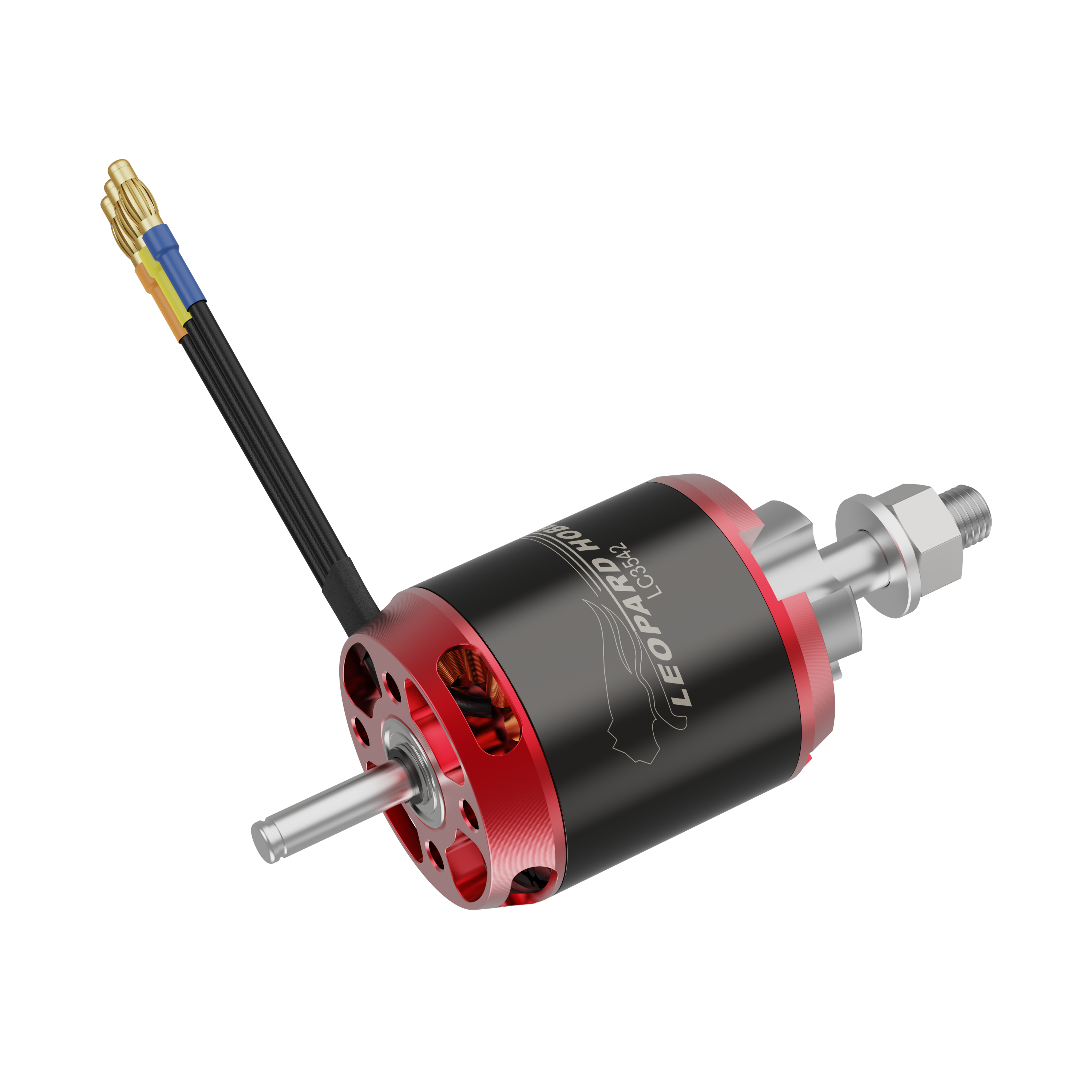

LC3542

产品详情

LC3542 Series Specification（Dia.×Length：Φ35.0mm×42.0mm）
Length of extend shaft ：-------			18(mm)		Weight：--------------		135(g)
Shaft Dia. ：-----------------------			5.0(mm)
Model	KV (RPM/Volt)	No-load current (A)	Max Amps (A)	Propeller	Max Voltage (V)	Current (A)	Pull (g)	Power (W)	Resistance (Ω)	Load current (A)
LC3542-5T	1080	1.4	55	1340	7.4	18	1000	133	0.026	47
					8.4	22	1350	185
					11.1	33	2100	366
					12.6	40	2600	504
					14.8	46	3050	681
				1147	7.4	21	1000	155
					8.4	27	1400	227
					11.1	39	2000	433
					12.6	44	2250	554
				1260	7.4	28	1400	207
					8.4	33	1600	277
					10	42	2050	420
LC3542-6T	920	1.1	42	1365	7.4	22	1200	163	0.0365	36
					8.4	26.5	1440	223
					10	33.5	1720	335
					11.1	39.5	2050	438
				1340	11.1	22	1600	244
					12.6	27	2000	340
					14.8	33.5	2600	496
					16.8	41	3200	689
				1260	11.1	25	1600	278
					12.6	30	2000	378
					14.8	38	2600	562
					16.8	43	2900	722
LC3542-7T	780	0.9	36	1340	11.1	15.5	1200	172	0.0472	31
					12.6	19	1600	239
					14.8	24	2150	355
					16.8	29	2600	487
					18.5	34	3000	629
					20	37	3250	740
				1540	11.1	22	1800	244
					12.6	26	2150	328
					14.8	33	2800	488
					16.8	39	3400	655
LC3542-8T	690	0.7	33	1340	12.6	14	1250	176	0.0609	28.5
					14.8	17	1750	252
					16.8	21	2100	353
					18.5	24	2500	444
					21	29	3000	609
					22.2	32	3250	710
				1540	11.1	16	1400	178
					12.6	19	1800	239
					14.8	24	2350	355
					16.8	28.5	2800	479
					18.5	33	3400	611
LC3542-9T	600	0.6	28	1540	11.1	12	1200	133	0.0785	24
					12.6	14.5	1500	183
					14.8	18.5	1900	274
					16.8	22	2400	370
					18.5	25	2800	463
					21	30	3350	630
				1560	11.1	16	1500	178
					12.6	19.5	1800	246
					14.8	24	2300	355
					16.8	29	2750	487
LC3542-10T	560	0.5	25	1540	11.1	10	1000	111	0.1035	21.5
					12.6	12	1200	151
					14.8	15.5	1600	229
					16.8	18.5	2000	311
					18.5	19.5	2300	361
					22.2	23	2750	511
					25.2	27	3250	680
				1680	11.1	17	1550	189
					12.6	20	1900	252
					14.8	24	2200	355
LC3542-12T	450	0.4	20	1680	14.8	17	2000	252	0.1325	17
					16.8	20	2200	336
					18.5	22	2600	407
				1880	11.1	15	1500	167
					12.6	18	1900	227
					14.8	22	2200	326
				1560	14.8	13	1600	1924
					16.8	15	1900	252
					18.5	17	2200	315
					21	21	2600	441
LC3542-13T	420	0.4	18	1560	14.8	11	1400	163	0.1671	15.5
					16.8	12.5	1600	210
					18.5	14.5	1900	268
					21	17	2200	357
				1680	14.8	14.5	1700	215
					16.8	17	2000	286
					18.5	19.5	2200	361
LC3542-14T	380	0.4	15	1560	14.8	9.5	1200	141	0.1815	13
					16.8	11.5	1500	193
					18.5	13	1700	241
					21	15.5	2000	326
					22.2	17	2200	377
				1680	14.8	12.5	1500	185
					16.8	14.5	1800	244
					18.5	16	2000	296
					21	17.5	2400	368
