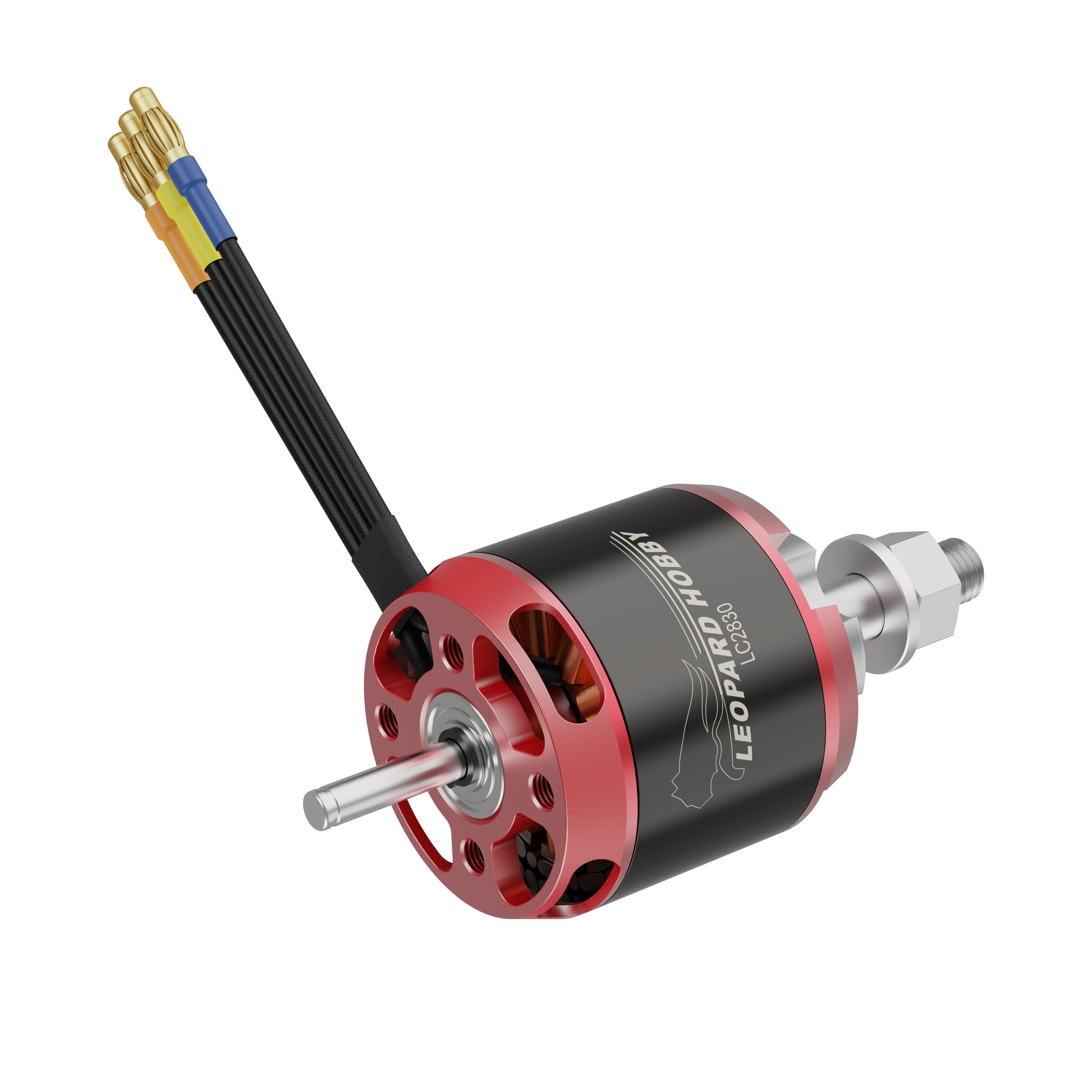

LC2830

产品详情

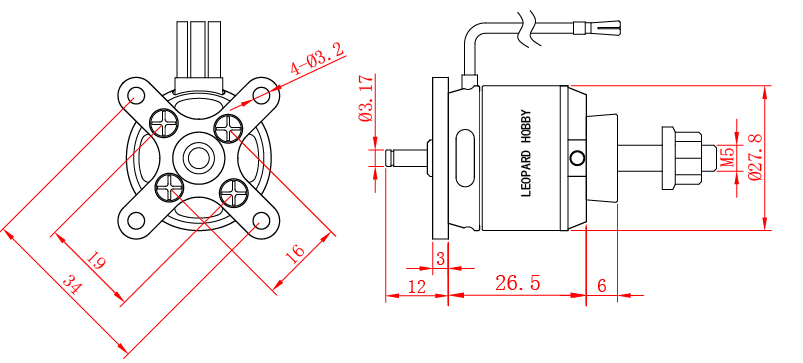

LC2830 Series Specification （Dia.×Length：Φ27.8mm×30.0mm）
Length of extend shaft ：-------			12(mm)		Weight：--------------		56(g)
Shaft Dia. ：-----------------------			3.175(mm)
Model	KV (RPM/Volt)	No-load current (A)	Max Amps (A)	Propeller	Max Voltage (V)	Current (A)	Pull (g)	Power (W)	Resistance (Ω)	Load current (A)
LC2830-9T	1290	0.7	18	0843	7.4	7.5	450	56	0.083	15.5
					8.4	9	555	76
					11.1	12	740	133
					12.6	13	820	164
				0947	8.4	13.5	780	113
					11.1	17	1000	189
					12.6	19	1120	240
				1047	7.4	13.5	770	100
					8.4	16.6	920	140
					11.1	22	1260	244
LC2830-12T	980	0.5	15	0947	7.4	5.5	419	41	0.1575	13
					8.4	6.5	495	55
					10	8.5	670	85
					11.1	9.5	740	105
					12.6	11.5	890	145
					14	12.5	1010	175
				1047	8.4	8.5	600	72
					11.1	12.5	925	139
					12	13.6	1000	163
					14	16	1150	224
				1147	8.4	11	720	93
					11.1	16	1010	177
					12	17	1110	204
LC2830-14T	830	0.4	13	0947	7.4	4	312	30	0.1772	11.5
					8.4	4.5	384	38
					11.1	7	610	78
					12.6	8	720	101
					14	9.2	850	129
					16	11	1020	176
				1047	7.4	4.5	379	33
					8.4	5.5	458	46
					11.1	8.1	722	90
					12.6	10	899	126
					14	11.5	1000	161
					16	13	1160	208
				1147	11.1	12	870	133
					12	13	1000	156
					14	16	1150	210
				1380	8.4	11	650	92
				1380	11.1	15	1000	167
LC2830-16T	730	0.3	10	1047	7.4	3.2	296	24	0.2775	8.5
					8.4	3.8	360	32
					11.1	6	540	67
					12.6	7	640	88
					14	8	740	112
					16	9	840	144
				1147	7.4	4	348	30
					8.4	5	435	42
					11.1	7	635	78
					12.6	8	720	101
					14	9	810	126
					16	10.5	910	168
				1680	8.4	10	800	84
					11.1	13	850	144
					12	14	1000	168
				1365	7.4	8.1	485	60
					8.4	8.9	560	75
					11.1	12	700	133
					12.6	12.8	741	161
